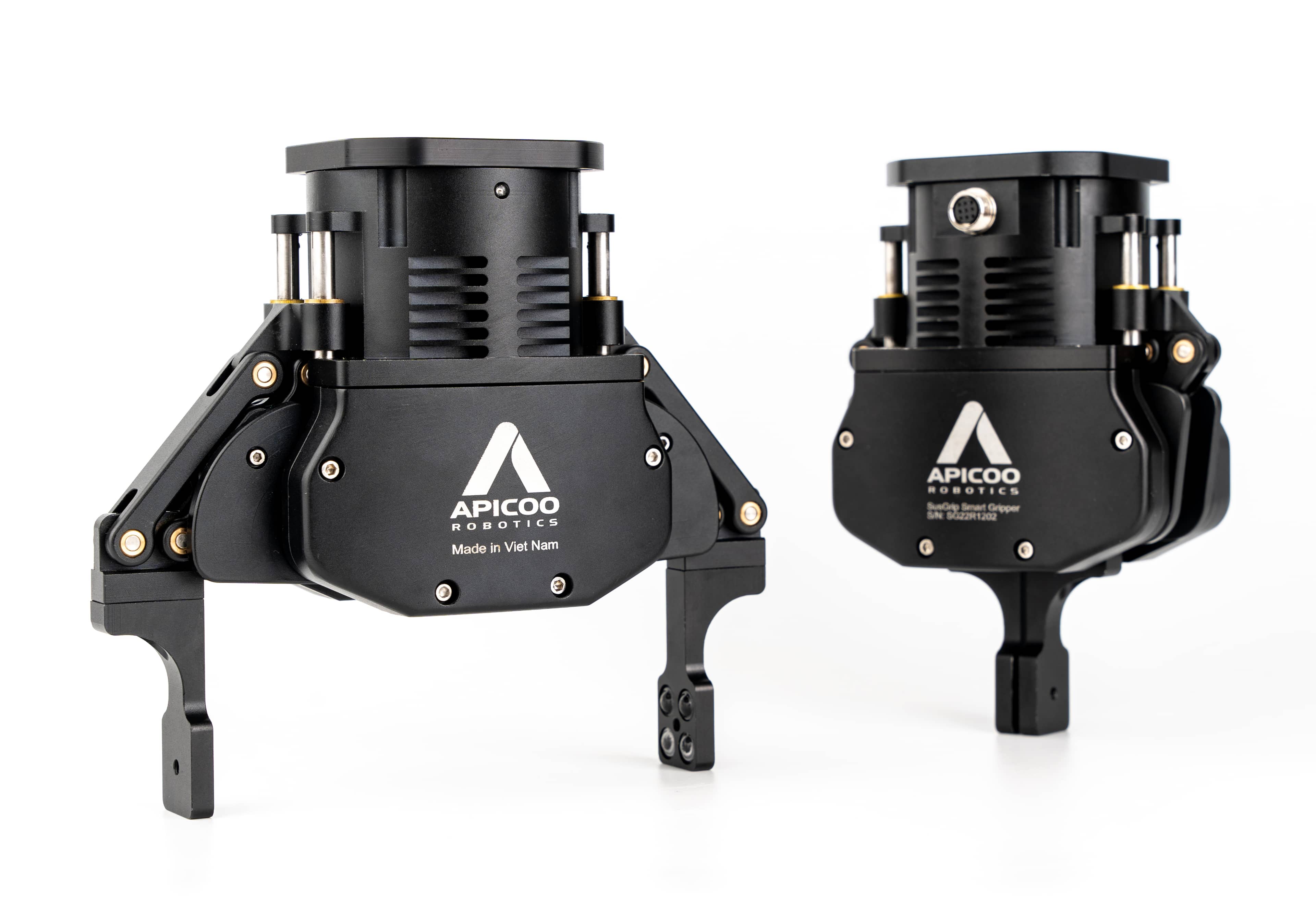

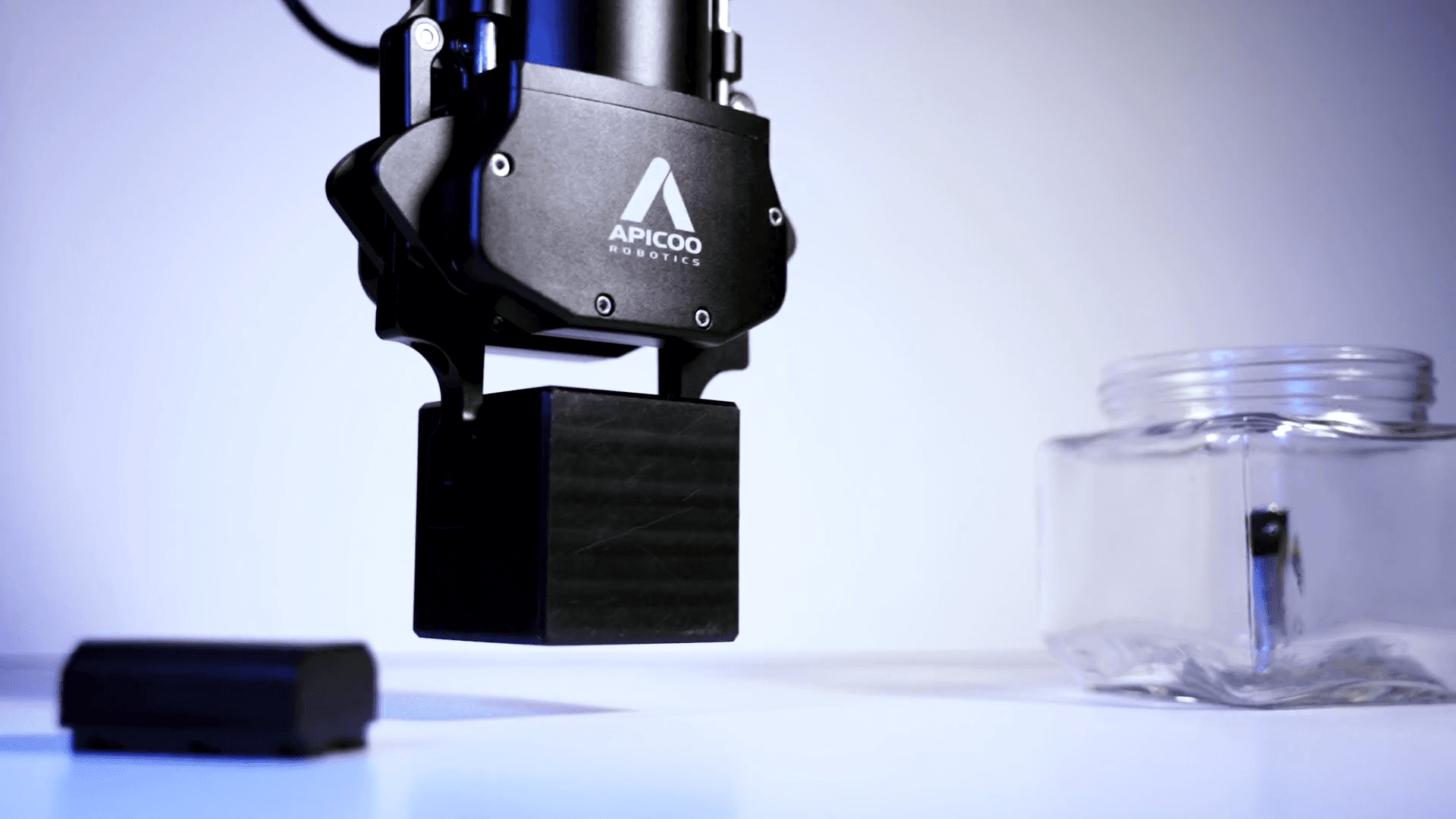

FitGrip30

modular finger for customized gripping solutions

Simple design, only 6 main parts

Low cost with industrial quality.
Very durable and reliable.

Modular design

Adapt to any size/shape.
Large hollow space between fingers for big size object.

Easy control

Simple ON/OFF signal.
Adjustable preset gripping force.
get manual

specifications

Gripping force

15-35N.

Closing time

< 100ms.

Life time

~ 15.000.000 cycles.

Form-fit grip payload for 2-finger configuration

~ 5kg.

Frictional grip payload for 2-finger configuration

~ 2kg.

Weight

240 gr.

Voltage

24v DC.

Size

129 x 47 x 25 (mm).
