SUSGRIP 3F
Built for high-mix machine tending
Size
D128xH117mm
Stroke
10-150mm
Weight
1540g
Gripping Force
140N
Speed
120mm/s
Payload
5kg
Repetition Accuracy
0.1mm
Resolution
0.5 mm
Power Supply
24V / 2A



What Sets SusGrip-3F Apart
A three-finger gripper that closes concentrically for stable, repeatable picks on round stock, cylinders, and irregular parts
10–150mm for every SKU
One gripper covers the full part family - no changeover between jobs.
Rugged, sealed for harsh
Resistant to coolant oil, metal chips, and dust - built for the machine floor, not the lab.

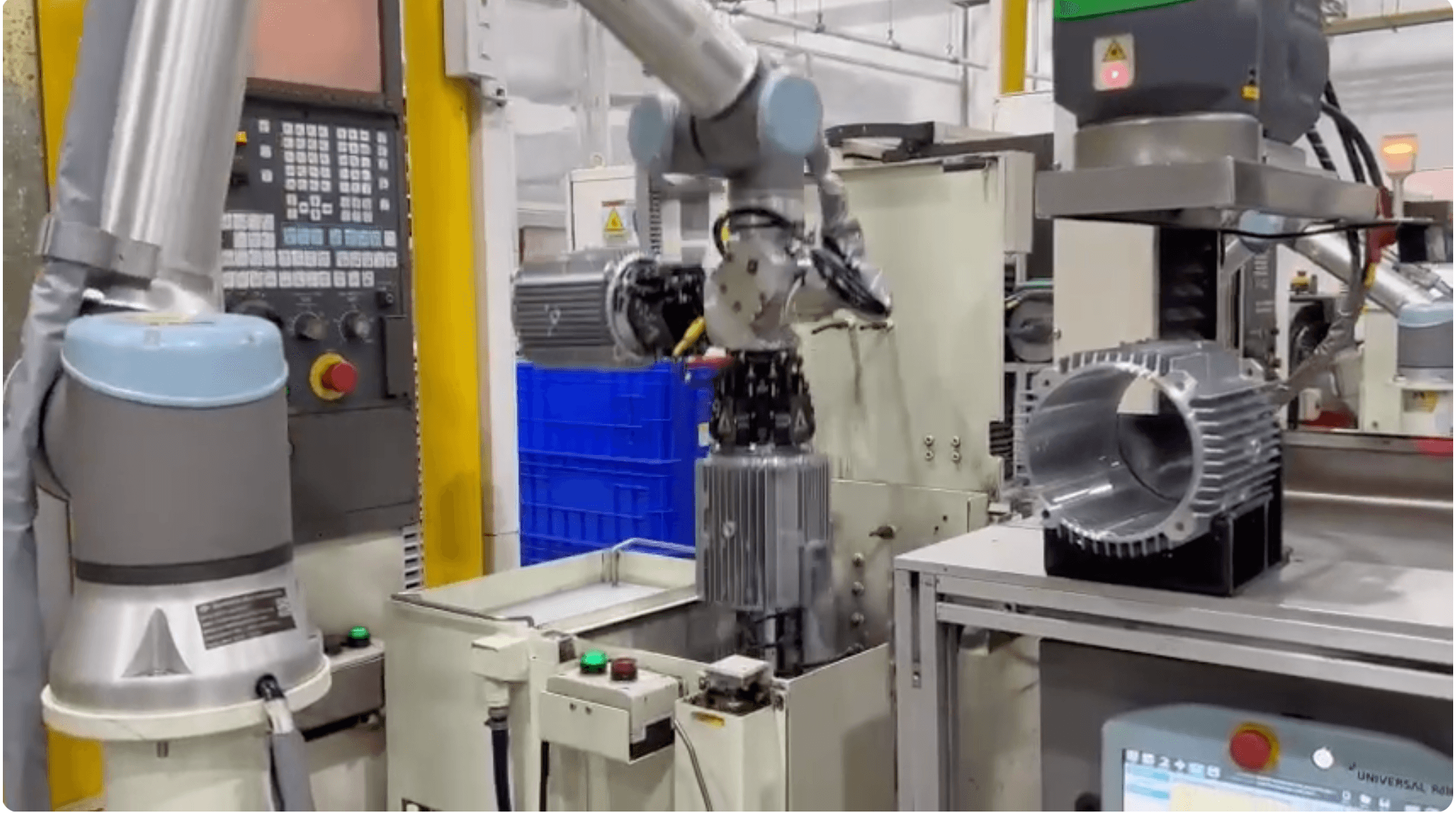

Self-centering grip
Three fingers close simultaneously toward the center - stable grip on round, cylindrical, and bulky parts.
Low-code setup
URCap, TMFlow and equivalent plugins. Running in minutes, not days.
Absolute position feedback
No homing cycle to run, no startup delay .
Enhanced Safety
Safe for human-robot collaboration - by mechanism.

Everything Else You'd Want?
Object Detection
Plug & Play
02 Control Modes
Internal & External Grasping
Self-lock Mechanism
Intuitive GUI
Customizable Fingertip
Large Force Capacity
Manual Adjustment

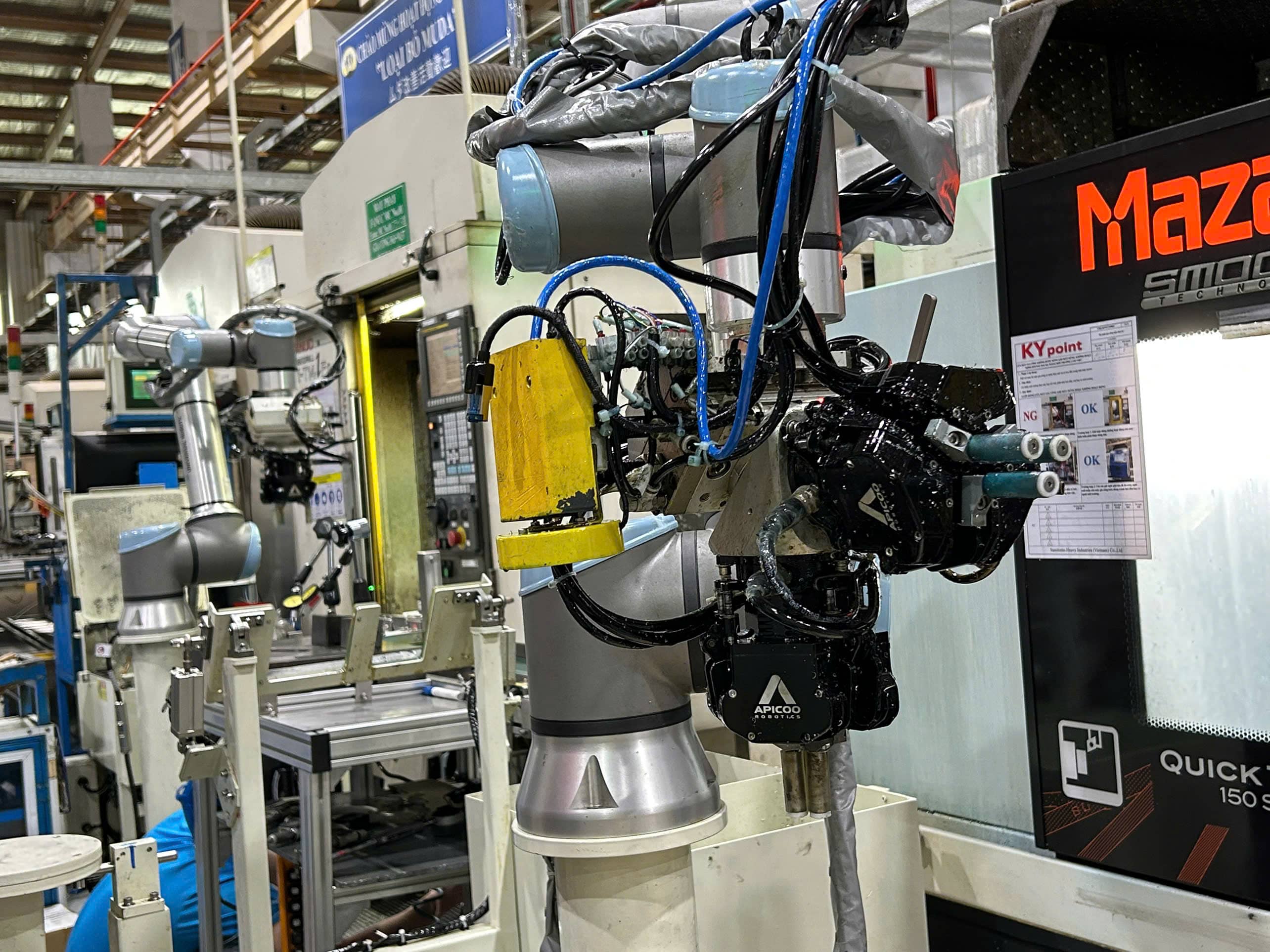

Machine Tending - 43 SKUs, One Gripper Setup
High-mix CNC machine tending for load-bearing cover components - 43 part variants, ranging from Ø25 to 157 mm in diameter. Too many variants to automate with pneumatic tooling, the line ran on manual labor - handling oily, slippery parts by hand, continuously.
Apicoo automated the line with 4 SusGrip-3F units - 2 per CNC machine, replacing manual handling entirely.
43 SKUs
Handled by one gripper - no tool changes
Ø25–157mm
Full cylinder size range covered
Harsh
Coolant oil · metal chips · dust
160 N
Gripping force
(enhanced firmware)

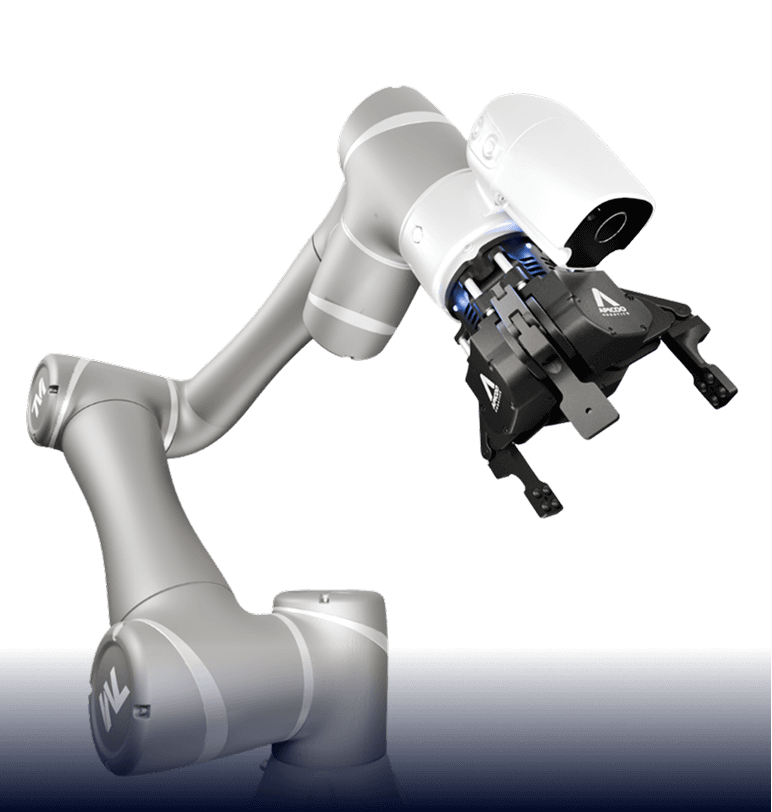

Collaborate With Your Cobot

Mounted directly on 6-axis cobot arms, SusGrip-3F integrates through URCap, TMFlow and equivalent manufacturer plugins - running today on production lines.
Low-code setup - no controls engineer required
10–150mm stroke covers full HMLV part families without a tool change
Concentric grasp keeps round stock centered without precise vision calibration
Work With The Arms You Already Run












Testimonials

Michael Wendling
Deputy head of the Swiss Smart Factory group, Switzerland
Innovation Park Biel/Bienne
"I was in search of a collaborative gripper offering a stroke length greater then most common 60 to 100mm available on the current market. SusGrip gripper stands out remarkably for its excellent balance of compact size and extended stroke, significantly enhancing the flexibility of any robotic application. I was thoroughly impressed by the user-friendliness of the configuration software. Additionally, the dual control options- single IO or Serial- further elevate its versatility. Users can opt for the straightforward and rapid single IO control or the more adaptable and customizable Serial control, catering to diverse operational preferences and requirements."

Luca Martinel
Industrial Engineer, Schaltag AG
"The SusGrip smart gripper has significantly improved our work process. Its large stroke and flexibility allow us to mount various electrical components for control cabinets on the DIN rail. What impressed me the most about the SusGrip is its large stroke, as it enables us to grip and handle a wide variety of components. Its versatility and performance have optimized our workflows and increased our efficiency."

Marvin Waldvogel
Business Unit Manager Software and Robotics
Phoenix Mecano Solution AG
“The SusGrip-2F left a highly professional impression on our team. Its large gripping range (0–128 mm), strong 100 N force, and smooth operation made for a consistently positive experience. We were particularly impressed with its precise and repeatable gripping accuracy, user-friendly interface, and solid build quality. The integration through URCap and into DOBOTStudio was seamless and the control system worked flawlessly.”
Ready to see SusGrip on your robot?
Talk to our applications team. We'll specify the right gripper for your platform and part family - and get you running in days, not months.
